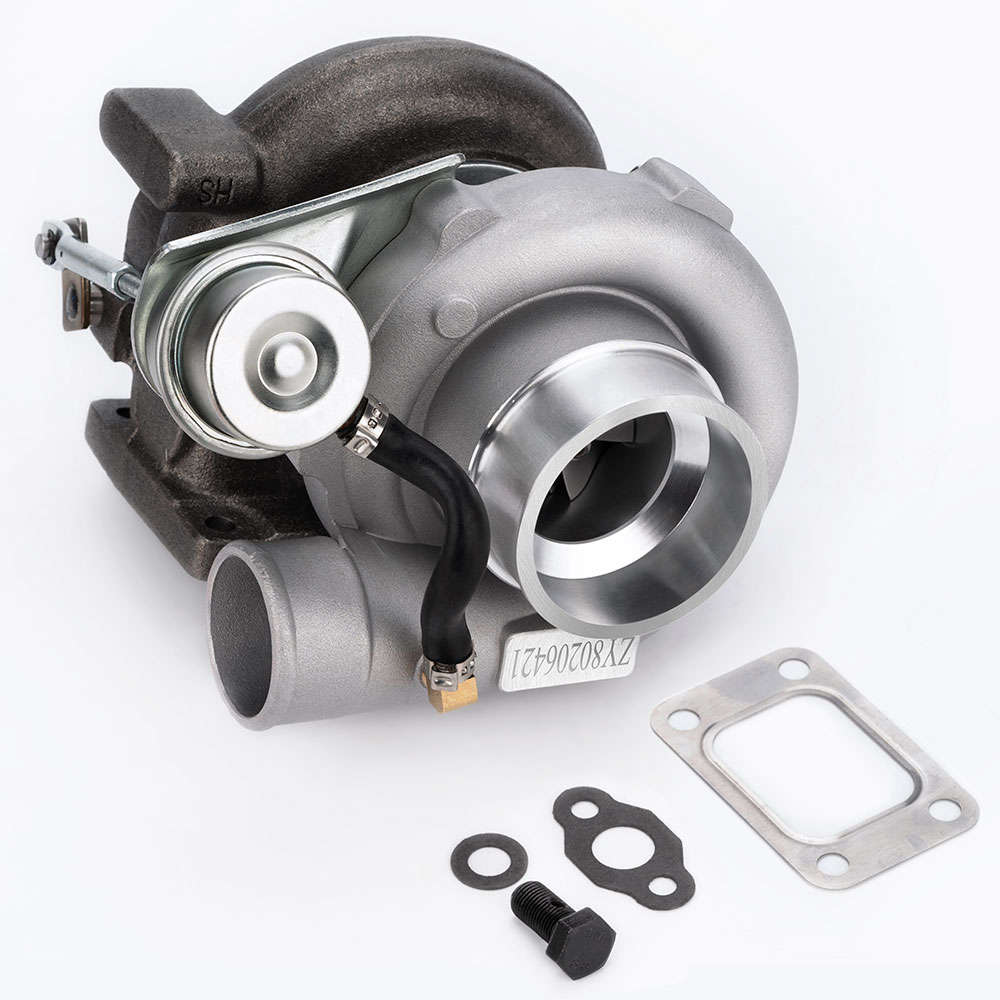

GT2871 GT2860SR20 Upgrade Turbo Tubocharger 350HP 0.6 A/R 0.64 A/R 5-Bolt Flange Universal Oil+Water Cooling
GT2871 GT2860SR20 Upgrade Turbo Tubocharger 350HP 0.6 A/R 0.64 A/R 5-Bolt Flange Universal Oil+Water Cooling
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Item Number
1708487469
Overview
Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrods GT2871 universal turbocharger is excellent for single turbo applications for 1.5-2.0L engine. Don't hesitate to get a turbo to boost your car's power.
Application
Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adrapter is needed).
Perfect for all 1.5L-2.0L engine，for all 4 cylinder
Horse Power: Boost Horse Power up to 350BHP
Specification
Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Thread Size: M8*1.25
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHP
Accessories: You will get exactly as shown as picture above
Features
1. 100% BALANCING TEST：This Turbocharger you will receive has been balanced using the VSR machine technology.
2.Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius.
3. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.
4. Compressor housing：ZL104 aluminum.
5. Compressor wheel/blades:
- Cast Aluminium with good gas tightness and corrosion resistance.
Installation Suggestions
About Turbo failure:
The 6 most common failures are:
1. Oil starvation
2. Oil contamination
3. Impact damage
4. Blocked Engine breather
5. Over speeding of shaft and wheel
6. Hot shut down
Common causes of turbocharger failure:
1. Improper Lubrication / Lack of maintenance
2. Foreign object damage Overspeeding
3. Excessive oil pressure
4. High mileage engine
5. Engine Lacks Power
The following situation indicate the turbo failure:
1. Black Exhaust Smoke
2. Excessive Engine Oil Consumption
3. Blue Exhaust Smoke
4. Turbo Noisy
5. Cyclic sound from turbo
6. Oil Leak from compressor seal
7. Oil Leak from turbine seal
highly suggest you find professional mechanic to help you install it, here are somecheck list before installation.
1. Replace oil supply lines and fittings. These lines often become plugged with decomposed oil which restricts oil flow and drainage.
2. Do not used silicone or thread tape
3. Make sure all openings to turbo are open and not plug or capped off.
4. Shut off fuel or disable ignition and crank the engine for at least 15 seconds or until oil pressure is raised
5. Allow engine to fast idle (1,000 RPM) for 3 - 5 minutes to compatible for Seat turbo seals
6. Always let engine idle for 3 -5 minutes before shut down, otherwise the turbo will continue to spin without oil lubrication and pressure
7.When changing oil, be sure to prime oil filter
Note
* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
Shipping
1. We will ship your order in one business day once the payment is cleared.
2. Tracking number will be uploaded to your MXR customer account within 24 hours after shipment. Meanwhile, you will get the logistics notification mail.
3. Shipping time usually takes 2-7 business days when products available in local warehouses, and 5-25 business days to International addresses.
4. We only ship the item to PayPal verified shipping address if you pay with PayPal. Please make sure your shipping address is the same as PayPal.
5. Import Tax: We do not cover any import Duty and Tax. Customer should be responsible for the Import tax.
6. Please understand that extra shipping fee may be needed for some International customers, especially buyers from affiliate islands of France, Italy, Portugal, Spain and so on.
Return Policy
We committed to provide good quality products to all our customers. We accept return or exchange within 30 days. No hassle for refund, 15 business days money back guarantee after we received the returned items. We hope that you will be pleased with your purchase. Your 100% satisfaction is our top priority.
1. If you are not satisfied with your purchase, please contact us as soon as possible after you received the item. Return shipping address will be provided and you will get the refund after we received the return item. All returned items must be in brand-new condition, unused and with original tags and packaging.
2. If the return is caused by the consumer, consumer should be responsible for the shipping fee. If due to our reasons, the goods received are damaged or not correct, and the consumer is not required to bear the shipping fee for this reason.
Important notice
1. Any returned item(s) without Return authorization will be rejected.
2. Please return your item(s) in original packaging and ensure that all packages are securely wrapped
3. We will not accept responsibility for loss or damage of goods during transit, please ensure that the insurance cover option is taken where possible
4. Upon receipt, all products will be inspected at our discretion in 3-5 business days. Then, the updated result will be informed.
If you have made a mistake on purchase and wish to cancel the order before it is dispatched please contact us by email as quickly as possible.
